 Leaking strut is covered by 1-year warranty. For extended warranty service to 2 years with extra cost, please contact our sole agent/dealers. |
Top Sport
By increasing 30~50% damping or 2kg/mm spring rate than street setting; it can absorb the impact of uneven pavement. It is able to absorb the jolt when across a big bumps, effectively suppress shock body and to increase tire’s traction. Vehicle stability makes you can experience perfect handling. All the settings from our Top Sport racing experience. It is suitable for track day and aggressive driving.

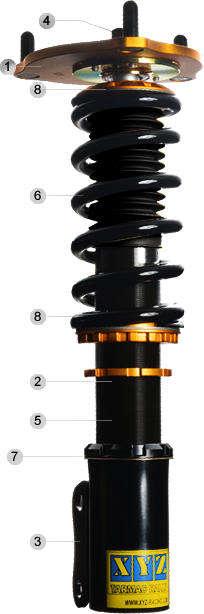

Top of the line of Top Sport damperMonotube design, and lightweight aluminum bottom mount.Larger piston diameter of 45mm, and shock body 51.5mm.Full ride height adjustable.30-way adjustable damping, designed for Top Sport race.Both front and rear top mounts are camber adjustable in orderto increase it’s handling
One year limited warranty; replacement for defective strut.Do not recommend in rally gravel use. All applications listed on our website are for 2WD modelunless we specify 4WD
Aluminum-made Top Mount (A6061)Each kit comes with pillowball top mount on both front and rear, which enables you to experience excellent handling ever. All the pillowball top mounts in McPherson strut with camber adjustable.
Feature Of Inverted Mono Tube DesignFeature of inverted mono tube design is suitable for use in Top Sport coilover system. It keeps damping stability on the uneven road. With larger piston diameter of 45mm, and shock body 51.5mm, it can bear the side way aggressive strong movement. Increase the amount of oil effectively inhibit the oil temperature rise, it can make coilover keeps excellent performance in intense manipulation.
Fully-adjustable Lower MountWith movable design, both ride height and preload can be adjusted by adjusting the lower mount.
McPherson lower mount
The iron material (SPHC-C) increases the strengths. Avoid the unusual displacement caused by a span of driving after wheel alignment and improving the lower mount deformation resulted from turning pressure.
Wishbone lower mount
Because there is no turning pressure, aluminum material (A6061) is adopted for wishbone lower mount, having ability to reduce weight and dissipate heat effectively.
McPherson lower mount
The iron material (SPHC-C) increases the strengths. Avoid the unusual displacement caused by a span of driving after wheel alignment and improving the lower mount deformation resulted from turning pressure.
Wishbone lower mount
Because there is no turning pressure, aluminum material (A6061) is adopted for wishbone lower mount, having ability to reduce weight and dissipate heat effectively.
Damping AdjustableTop Sport type damper has 30 different way of damping settings enables our products to bring the best performance for different top sport.
Anti-rustAll thread parts are coated with Fluorine to prevent corrosion or adherence. The lower mount is made with forged or anodized. All the products made with steel are go through rigid test system.
Coil SpringEach application comes with pillow ball top mount which can enable you to experience the driving feel directly. All parts are made by high quality (SAE9254). Top Sport damper is equipped with the springs that have the most perfect spring rates.
Hard RubberMade with steel (1008A), and forging with high-pressure. With its hardness, it can prevent loose problems when turning McPherson lower mount.
Spring WasherThe piece put between the spring and the locking ring is Iron washer, it can eliminate strange noises efficiency and allow a vehicle to move more smoothly when turning.
This coilover is special designed for Sport Spec. It keeps damping stability on the uneven road. Each kit comes with pillowball top mount on both front and rear, which enables you to experience excellent handling ever. All the pillowball top mounts in McPherson strut with camber adjustable. However, because of the design it is easy to create some slight unusual sound when come across big bumps. Basically, all kind of racing coilover is design for performance at special road and is not suggested to be used on road.
The pillowball top mount is able to adjust camber degree and increase stability and handling of your vehicle by 10%. However, the pillowball might be prone to creating slight amount of noise over big bumps, and this does not cover any warranty.
