Leaking strut is covered by 1-year warranty.
       For extended warranty service to 2 years with extra cost, please contact our sole agent/dealers.
Gravel Rally

This damper is mainly design for Rally Racing or Rally Cross. In all racing events, road condition of Rally Cross is the most aggressive one. Hence, it means that the shock absorber is the most important utensil during the Rally gravel competition.

We develop inverted tube design to meet each different road condition as sandstone, snow or silt.

Long stroke and long spring which enable to absorb chassis vibration, aggressively attack from high speed bouncy road and bear extremely G-force when turning.

All spring rate setting are tested by Rally Racing team.

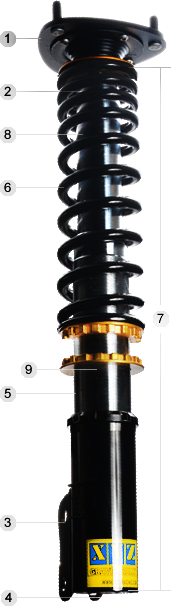

Top of the line gravel coilovers.
Inverted monotube design. (McPherson type)
Damper body with 55mm to enhance the structure of
Fully ride height adjustment.
Not suitable for normal road or tarmac rally use.
No warranty but it's able to be maintained in manufacturer.
30-level damping adjustable specifically for gravel rally.
Long stroke and long spring.
Steel-made bottom mount to enhance the safety.
 All applications listed on our website are for 2WD model
unless we specify 4WD.
Hardened Rubber Top Mount
This spec comes with rubber top mount is able to absorb aggressive influence from high speed jump and prolong coilovers' lifespan.
Feature Of Inverted Monotube Design
Waterproof, sandproof, dustproof. It's able to absorb aggressive vibration from harsh rally gravel conditions.
Fully Bottom Mount Adjustment
It adopts moveable bottom mount. Both ride-height and preload can be adjusted from adjustable lower mount. The steel-made lower mount can increase the safety.
Damping Setting Adjustment
It comes with 30 way of different damping to bring the best performance from different road situation.
All threaded parts are coated with Fluorine to prevent corrosion or adherence.
Coil Spring
Rally gravel dampers are equipped with the spring which have the most perfect spring rate with light material(SAE9254). These kinds of spring are longer and softer than general ones.
Strength Structure
Piston rod: φ45mm; its treatment is made by electroplating with material (STKMI3C) to enhance hardness and abrasion.
Shock body: φ55mm; larger shock body; It's able to bear more lateral pressure.
Lower mount: φ63mm; It's able to bear any type of aggressive vibration.
Monotube Inverted Design
McPherson type of suspension adopts inverted tube design. The feature is the strut cylinder is thicker than normal ones. Thus, it provides better stability and durability. It can meet any different road conditions as well as eliminate any extremely vibration.
Crash-proof Styrofoam
It uses PU material to produce. When damper meets aggressive attack, it can reduce heavily bounce and avoid uncomfortable feel when damper is bottoming out.

The hardened rubber upper mount is able to eliminate noise, to increases ride quality by 10%, and to extend the life of the top mount.
Please answer all questions below and send it back to us, your personal custom coilover kit will be made base on the info provided.
Name :
E-mail address :
Tel :
Vehicle Make :
Model :
Year :
What is your vehicle's horse power?
What is your vehicle's weight? ?Front:
kgs (
lbs), Rear :
kgs (
How's the weather?
A find day
A rainy day
What type of racing event do you participate in?
Gravel Rally
Tarmac Rally
What is your tire camber degree? ?Front:
degree , Rear :
What is your tire toe-in? ?Front:
Rear :
What is your tire toe-out??Front:
Rear :
What is your tire brand? ?
What type of your tires is?
Street tire
Slick tire with lines (soft compound tire)
Racing slick
Rally tire
What is your tire size?
What is your sway bar size? ?Front:?
mm , Rear : ?
Has the off-set of your wheel been modified?
YES, front off-set
, rear off-set
Is there any spacer to be bolted into your wheel?
YES, front
, rear
Does your vehicle have any frame welding?
