Leaking caliper with dust cover is covered by 5-year warranty.
       For extended warranty service to 7 years (caliper with dust cover), please contact our sole agent/dealers.
Complete brake kit content
Two-piece type 355x32mm drilled disc x2 pieces
Lightweight aluminum center bell x2 pieces
Aluminum F6 POT/ R4 POT caliper (Painted red, painted yellow, painted gold, painted black, anodized black or any other painted colors) x2 pieces
High stiffness brake bracket x2 pieces
Metal brake line x2 pieces
High performance brake pad x4 pieces/ 1set  (Sport and Race brake pad are available as well)
Package for tools x1 set

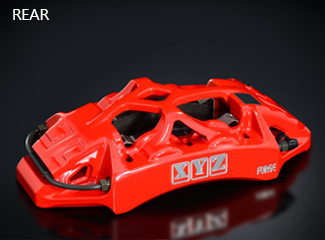

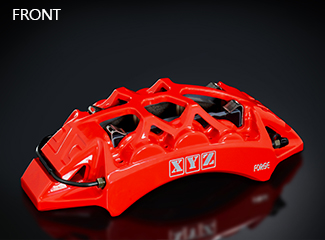

The Sport Hollow Caliper is made from aluminum; we form the main body first by
    Monoblock Forging process to achieve the effect of aligning the grain structure.
    Then apply CNC 3D processing technology to carve out the hollow design.
    The features of this product are to decrease weight, speed up the heat dissipation,
    effectively reduce brake temperature and enhance the braking force.
    It is usually found on advanced GT racing cars.
The thickness of the disc is 32 mm
The design of bigger vents provides a better function of heat dissipation.
The surface of the aluminum centerbell is anodized. It will provide a better durability.
The design of a two-piece disc can effectively reduce the weight of the brake system.

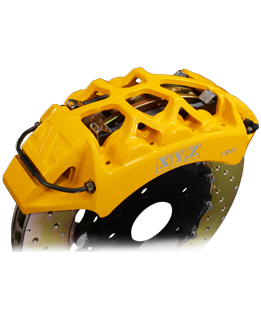

Aluminum 6 POT caliper (Standard color: painted red, painted yellow, painted gold, painted black,
anodized black or any other painted colors by customization)
High stiffness brake bracket with high ductility bolts
Stainless steel Teflon brake lines
GG level high performance brake pads  (Sport and Race brake pad are available as well)
 All applications listed on our website are for 2WD model unless we specify 4WD

 The discs from XYZ are the best choice of high performance car models. Ventilated ribs with large diameter can smoothly lead in a great amount of airflow from inside to outside. It will make a better function of heat dissipation. The design of drilled discs can enhance friction factor, reduce the weight of discs, take out the high temperature immediately produced from working, and keep stable braking function. The thickness, 32mm, of the discs can provide a better structural strength. This 355mm brake system is suitable for a 18 inch or a larger wheel.

 We offer standard drilled disc and slotted disc for customer’s option. If you have any preferred slotted disc style, we provide customized service with extra cost (the minimum order quantity is only one set).

XYZ's floating discs are available for 330mm, 355mm, 380mm, 400mm, 420mm, 444mm. XYZ provides floating discs for 380mm, 400mm, 420mm and 444mm brake systems. No extra fee required.
The center bells are made of aluminum. They are equipped with the characteristics of lightweight, good heat dissipation and high structural strength. The surface is processed with anodization. It makes the center bells harder, increases the durability of weathering, the duration of usage and beautifies the appearances.
High performance aluminum F6 POT/ R4 POT calipers The standard colors are painted red, painted yellow, painted gold, painted black and anodized black. You can choose any other painted color to fit your car.
Caliper Color Options:
Painted red, yellow, gold, black and anodized black are our caliper standard colors.

After XYZ tests several kind of different brake pads from racing competitions, the brake pads that XYZ chooses are equipped with high performances.

Confirmation of installation
